Dear listeners, hello everyone! I'm Xiao Si. Today, I am very honored to introduce to you our latest innovation in the power industry, the SCADA system of Kunlun distribution network. This is a revolutionary solution that will revolutionize our understanding and practice of intelligent power networks.

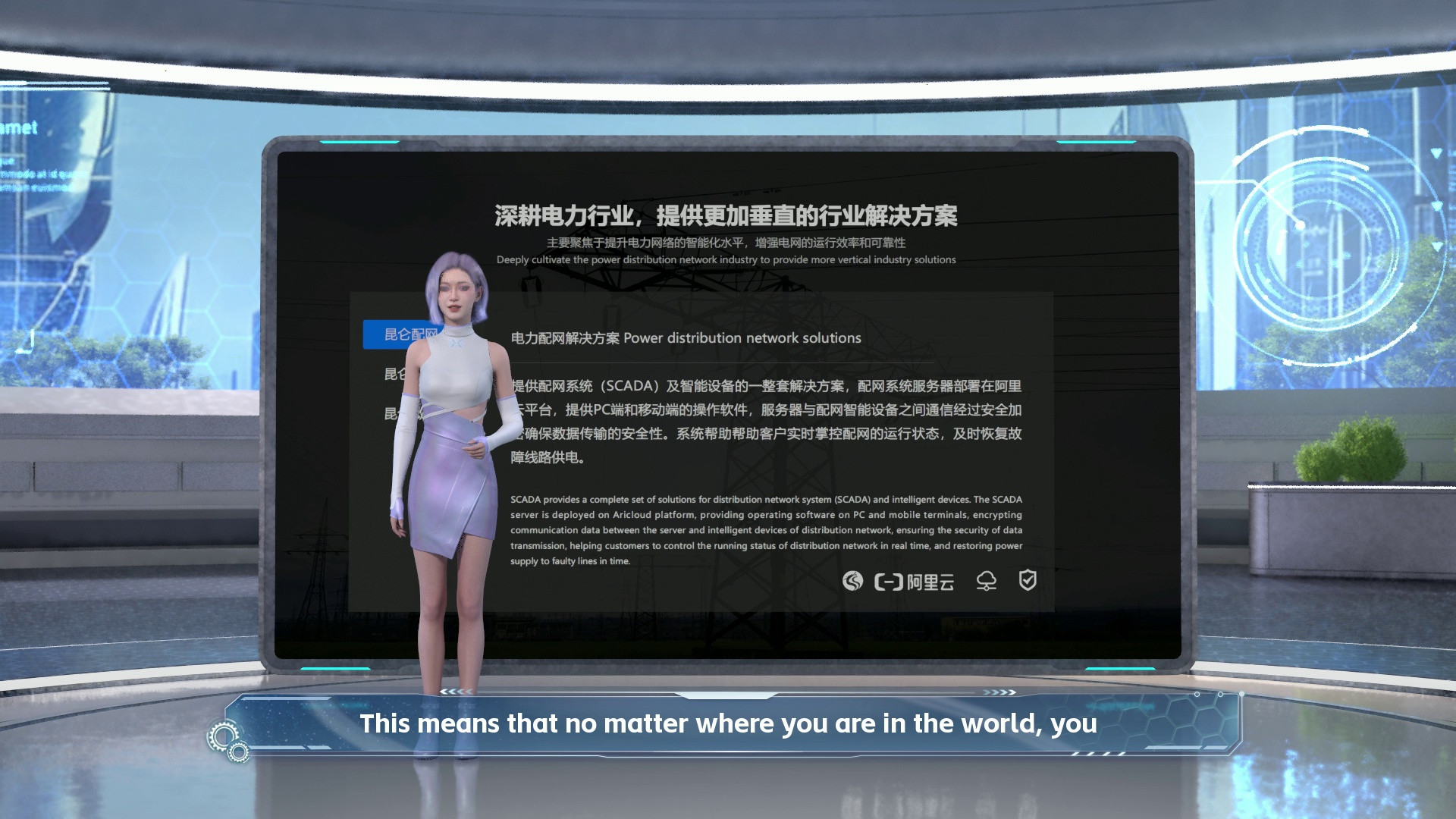

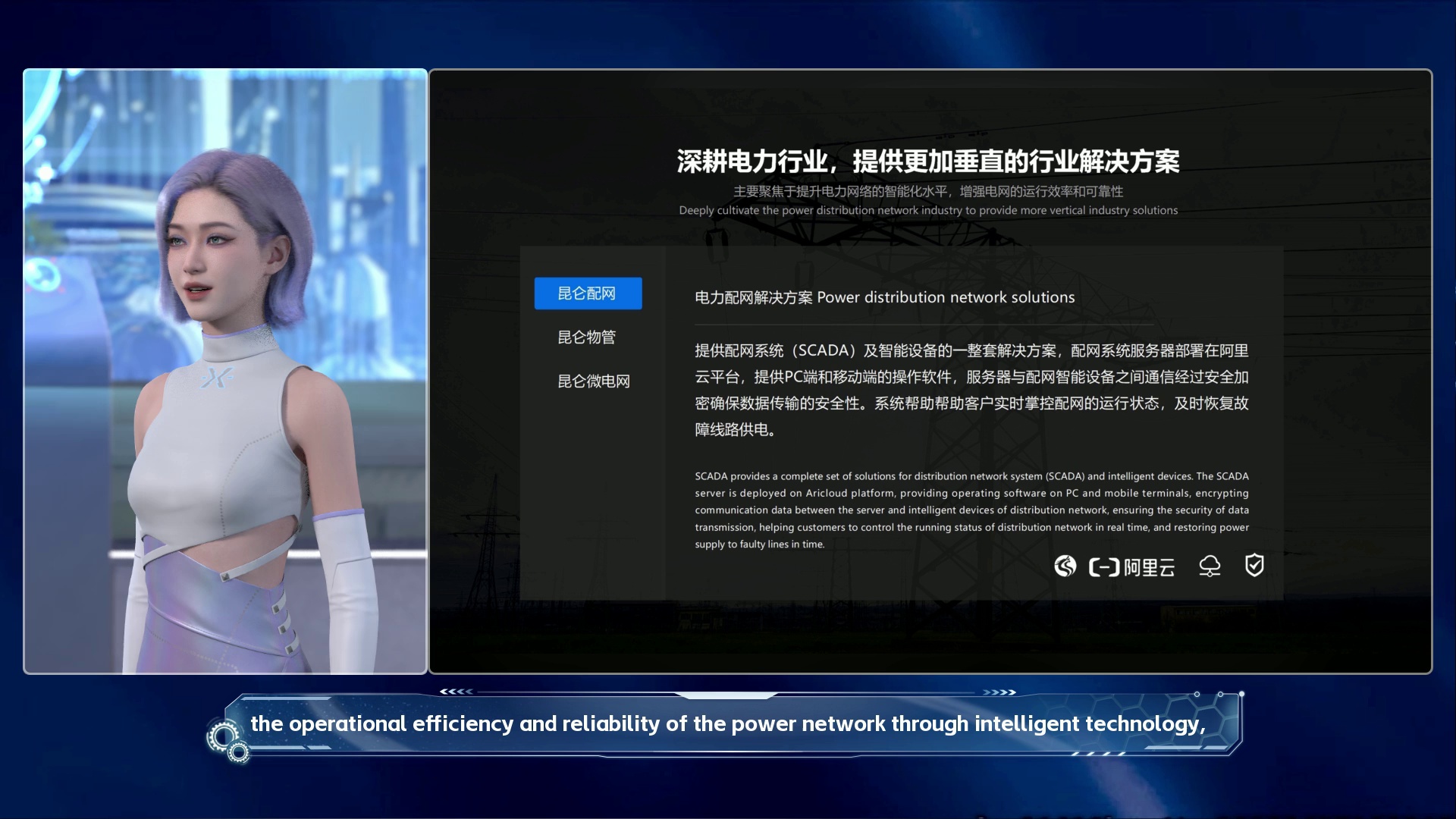

First of all, let's start with the core concept of Kunlun distribution network. We are well aware of the particularity and complexity of the power industry, so we focus on this field and provide more vertical and professional industry solutions. Our goal is to improve the operational efficiency and reliability of the power network through intelligent technology, and ensure the stability and security of power supply. The system includes a SCADA system and smart devices, and the servers are deployed on the Alibaba Cloud platform and support PC and mobile operations. We ensure the security of data transmission through encrypted communication, help customers grasp the operation status of the distribution network in real time, and restore the power supply of faulty lines in time. This means that no matter where you are in the world, you can easily manage your power network with our system.

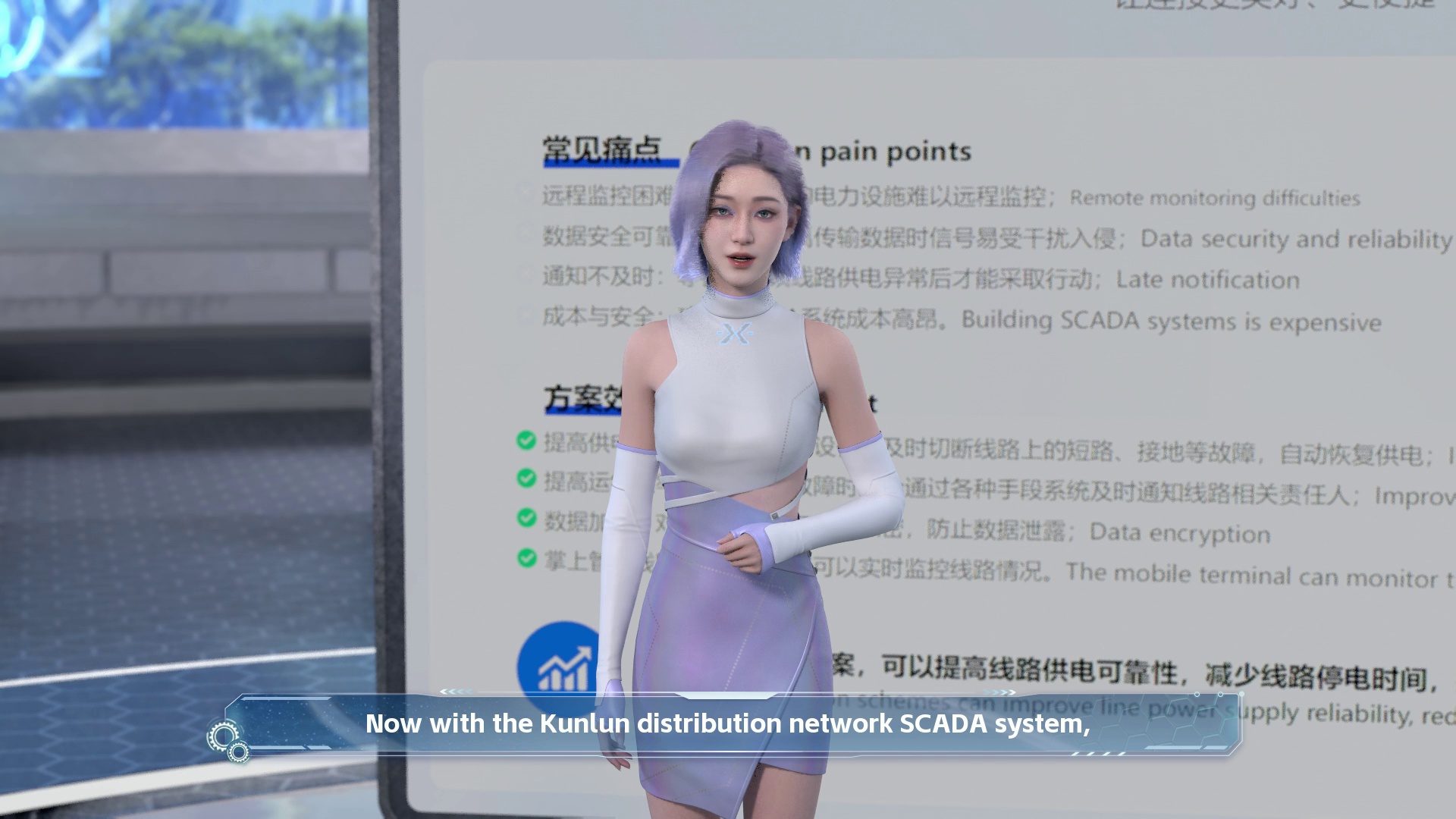

In the past, it was difficult for us to monitor remotely: power facilities in remote areas were difficult to monitor remotely; When transmitting data over long distances, the signal is susceptible to interference and intrusion; Notification is not timely: take action only after the customer feedback that the power supply of the line is abnormal; Building a SCADA system is costly. Now with the Kunlun distribution network SCADA system, the reliability of power supply can be improved: the intelligent equipment of the distribution network can cut off the short circuit, grounding and other faults on the line in time, and automatically restore the power supply; Improve O&M efficiency: When a line fails, the relevant responsible person of the line will be notified in a timely manner through various means; Encrypt all transmitted data to prevent data leakage; The line can be monitored in real time through the mobile terminal.

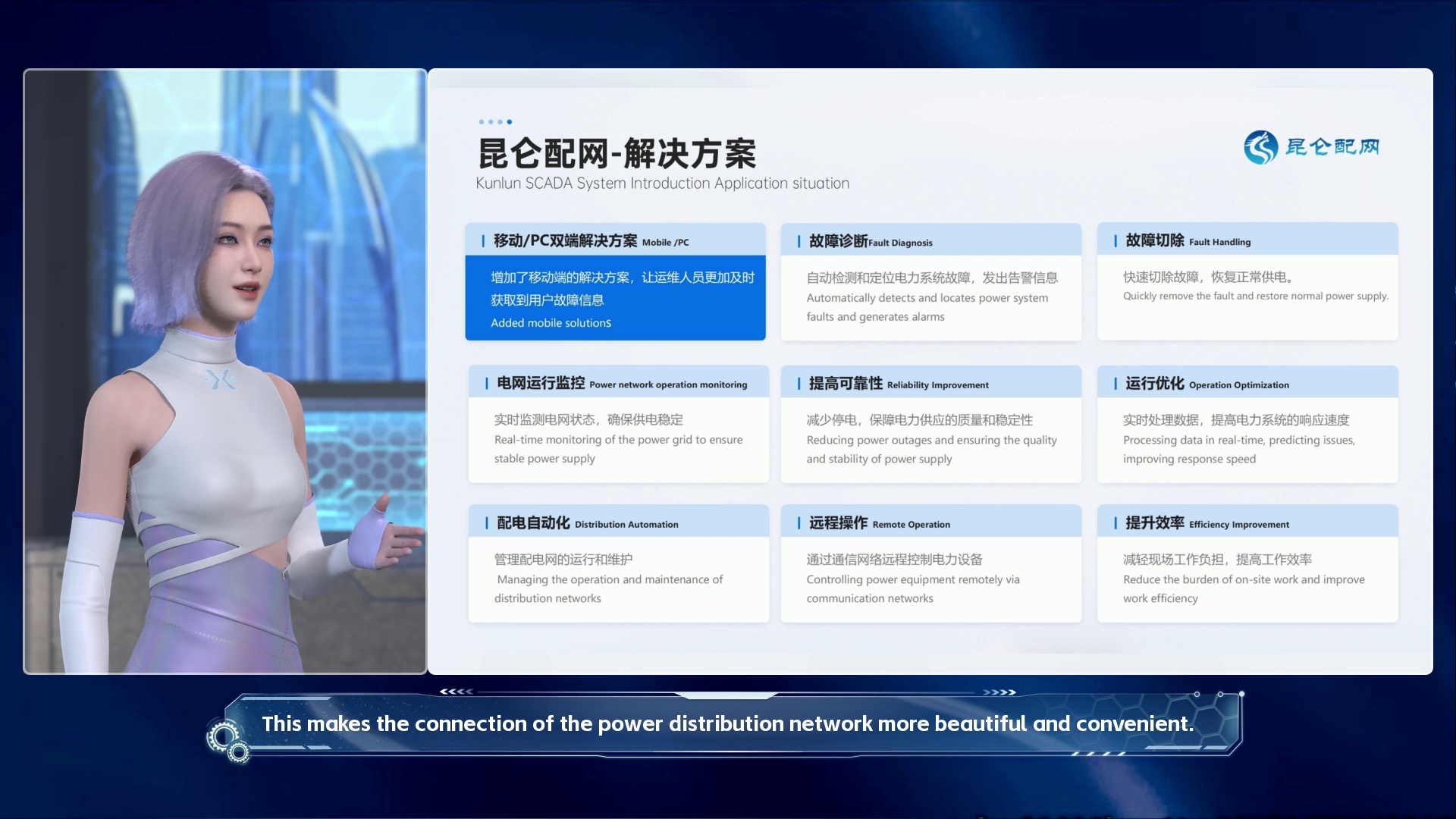

Through the optimization scheme of the SCADA system of Kunlun distribution network, we can significantly improve the reliability of line power supply, reduce power outage time, and improve operation and maintenance efficiency. This makes the connection of the power distribution network more beautiful and convenient. Our optimization solutions include advanced fault detection and diagnostics technology, as well as automated fault recovery processes to ensure that power supply is restored in the shortest possible time.

Now we will enter the PC operation demonstration of Kunlun distribution network SCADA system.

This session will show you how to efficiently manage and monitor your power network with our PC software. First of all, you will see that our software interface is designed to be simple and intuitive, and is designed to provide users with the best operating experience.

The software's main interface provides real-time data monitoring, an overview of system status, and quick access to frequently used functions. In the next few pages, we will see the interface of the SCADA system of Kunlun distribution network.

It can realize four remote information, real-time operation, and support mobile and PC operation

Support event mobile phone alarm, can view the equipment alarm information through WeChat, and can also notify customers of equipment failure and other problems in time through SMS and phone calls

Support GIS geolocation viewing, and you can view detailed voltage, current and other data when you click on the device

Imagine that you need to adjust the parameters of power equipment distributed over a wide area. With our system, you can set and adjust parameters remotely directly from your mobile device or PC. In just a few simple steps, you can view the current parameters of your device, make necessary modifications, and upload new settings in real time. This means that no matter where you are, you can be sure that your equipment's operating parameters are always in real time.

Support historical data query functions such as load graph, voltage graph, event record, etc

You can share devices directly on the mobile side, and you can create a variety of roles on the PC side

Use configuration to build a circuit diagram on the PC side, and support icon customization

On the mobile terminal, you can view current load diagrams, voltage curve diagrams, etc

Next, let's move on to the introduction of the device

The Kunlun distribution network SCADA system supports the common IEC60870-5-101 and IEC60870-5-104 protocols, which means that any power distribution equipment that meets these protocol standards can be connected to our system.

FTU is an outdoor power device that can operate stably in harsh environments. It has the following functions: Telemetry: real-time monitoring of voltage, current and other grid parameters. Remote signaling: Record switching status and fault signals. Remote control: remote control switch operation. Remote Adjustment: Adjust the equipment settings to suit the grid load. Fault Recording: Records the waveform data at the time of the fault. GPS-Beidou Positioning: Quickly locate fault points. FTUs are at the heart of distribution network automation and help us manage our power networks efficiently

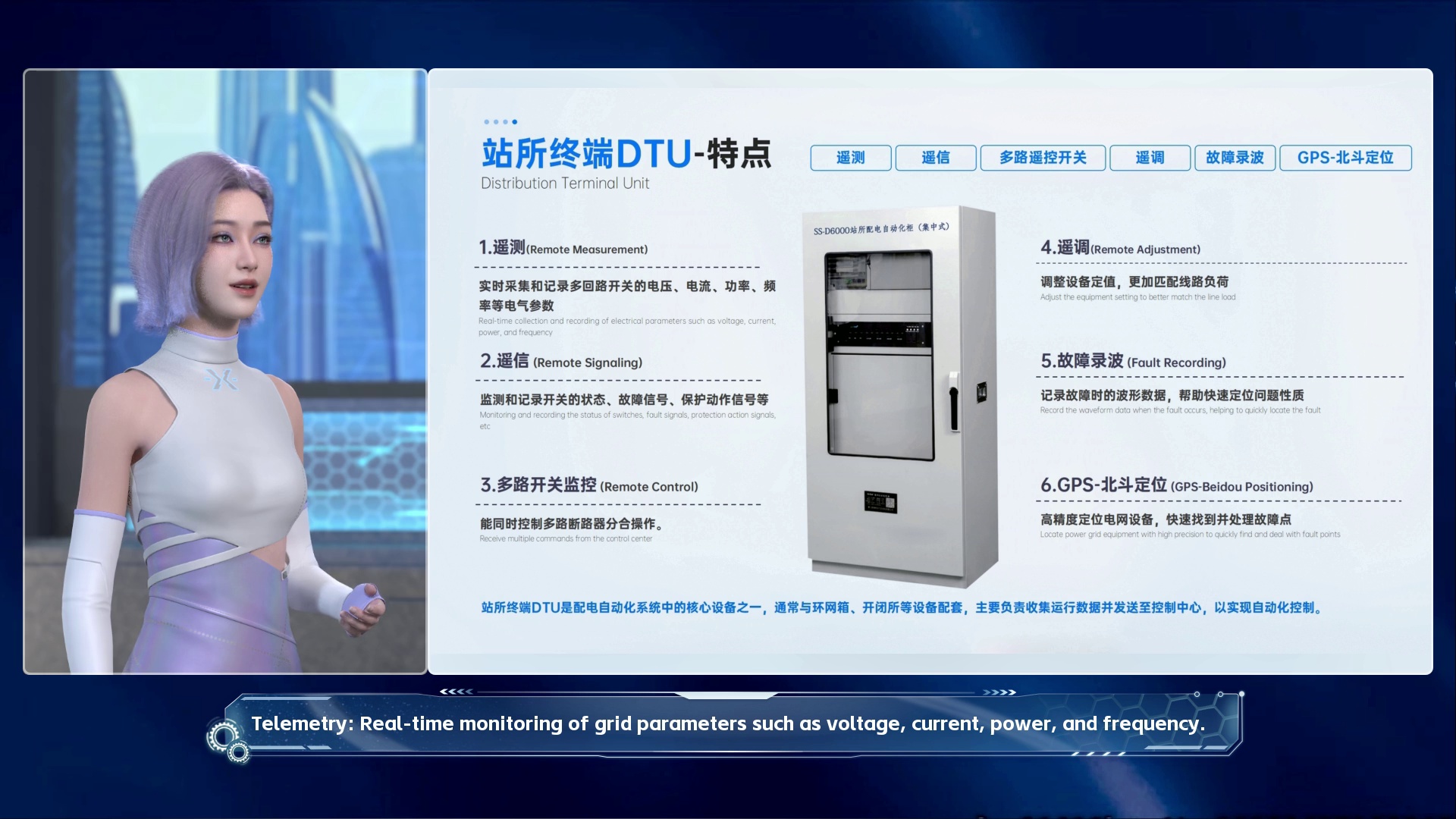

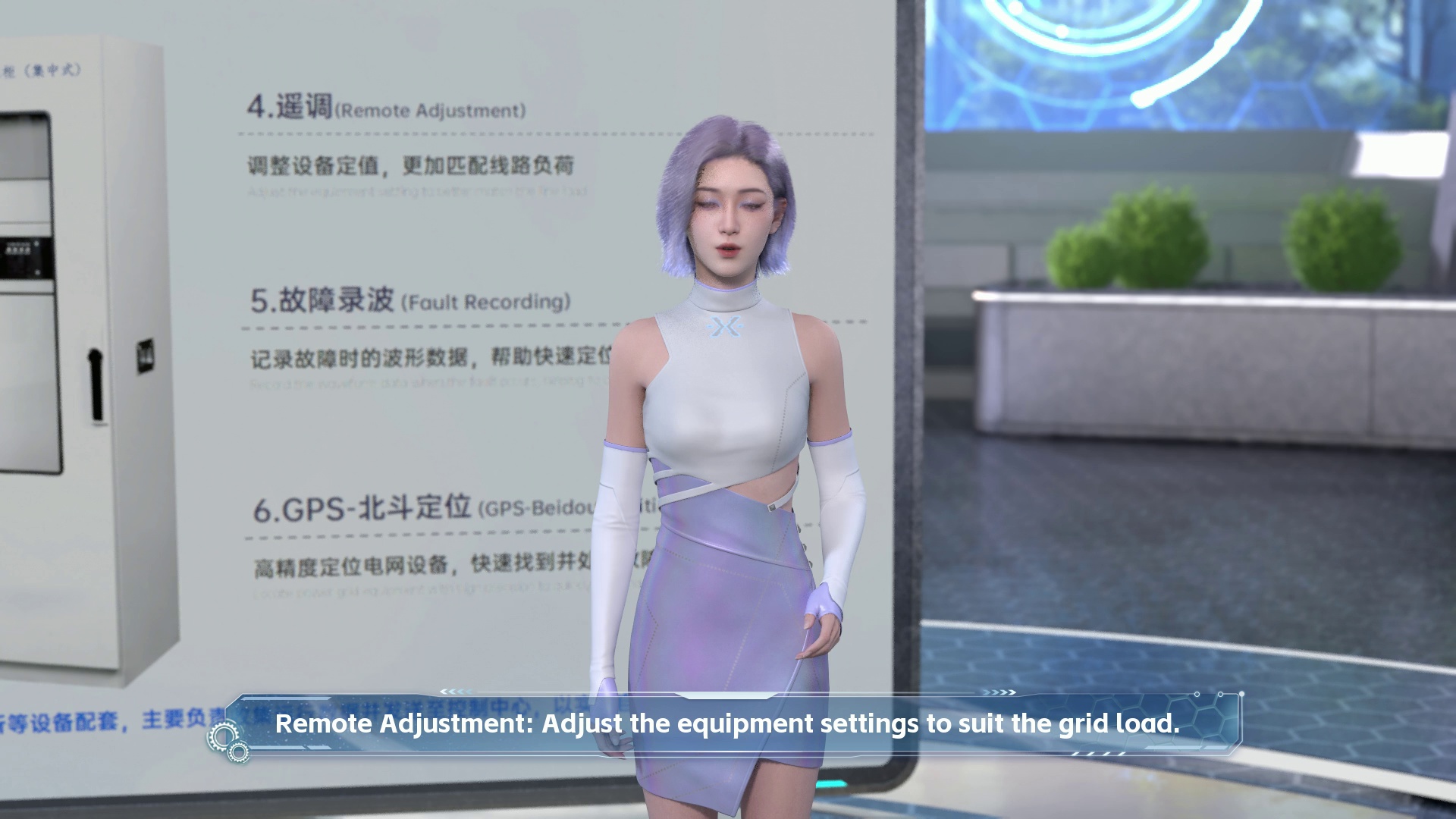

DTU is the core equipment in the distribution automation system, which is used in conjunction with ring main boxes, opening and closing stations, etc., and is mainly responsible for collecting operation data and sending it to the control center. Telemetry: Real-time monitoring of grid parameters such as voltage, current, power, and frequency. Remote signaling: record switching status, fault signals and protection action signals. Remote control: control the opening and closing operation of multiple circuit breakers at the same time. Remote Adjustment: Adjust the equipment settings to suit the grid load. Fault Recording: Records waveform data at the time of a fault to help quickly locate the problem. GPS-Beidou positioning: high-precision positioning of power grid equipment, quickly find and deal with fault points. Through these functions, DTU realizes automatic control of the power grid and improves the efficiency of operation and maintenance.

The fault indicator is an important device in the power system, and it has the following functions: Data collection: real-time detection of current and voltage changes in power lines to determine whether a fault occurs. Fault discrimination: Algorithms are used to determine the type of fault, such as short circuit or ground fault. Fault indication: Intuitively indicate the location of the fault, by flop or flash, etc. Signal output: It has the function of signal output to transmit the fault information to the monitoring center. Automatic Delay Reset: Automatically reset after a certain period of time to reduce false alarms. The fault indicator can quickly identify and display the location of the fault, so that maintenance personnel can quickly locate and deal with the problem.

Next, enter the introduction of cooperative customers

Kunlun distribution network SCADA system has established cooperative relations with more than 300 brands, covering energy group, China Railway Group, power supply management, mining, hydropower, photovoltaic power station and other fields.

The choice of these partners is not only a recognition of the reliability and professionalism of our systems, but also an affirmation of our service and support.

Today I would like to share a successful case of distribution network automation of local power under Shanxi Energy Group. The project covers three cities and 12 counties, and the Kunlun distribution network system has been successfully deployed in 8 of them. Currently, we manage more than 400 pole breakers and ring network enclosure equipment for more than 200 lines. After implementing automation, we have achieved the following remarkable results: Within one year, we met the requirements of the China Energy Administration for more than 70% of the enterprise distribution network automation coverage. The mean time of power outage has been greatly reduced to less than 10 minutes per year. The pressure on O&M personnel and the O&M cost of the enterprise have been significantly reduced, and the O&M efficiency has been increased by more than 3 times. This case proves the effectiveness and practicability of Kunlun's distribution network automation solution, and sets an excellent example for the power industry.

Compared with traditional equipment, the SCADA system of Kunlun distribution network shortens the operation process from 30 minutes to 1~2 minutes, which greatly improves the work efficiency. This improvement not only reduces the operating time, but also reduces the possibility of human error, ensuring the stable operation of the power network.

Thank you for listening, Kunlun distribution network system is an important contribution to the intelligence of the power industry. We look forward to working with more partners to jointly promote the innovation and development of the power industry." Thank you!
